Lead Screw

Application industry:

Trapezoidal screw is mainly used for low speed, large load, high precision and continuous operation, such as CNC machine tools, Printing machines, Injection molding machines, Robots, etc.

Lead screw Dia & Lead

Dia./Lead	1	2	3	4	5	6	7	8	9	10	12
6	●	○	○	○	○	○	○	○
8	○	●	○	○	○	○	○	○
10	○	●	○	○	○	○	○	○	○
12		○	●	○	○	○	○	○	○
14		○	●	○	○	○	○	○	○
16		○	○	●	○	○	○	○	○	○	○
18		○	○	●	○	○	○	○	○	○	○
20		○	○	●	○	○	○	○	○	○	○
22				●
25		○	○	●	○	○	○	○	○	○	○
30		○	○	○	●	○	○	○	○	○	○
40		○	○	○	○	○	●	○	○	○	○
50		○	○	○	○	○	○	●	○	○	○
60		○	○	○	○	○	○	○	●	○	○

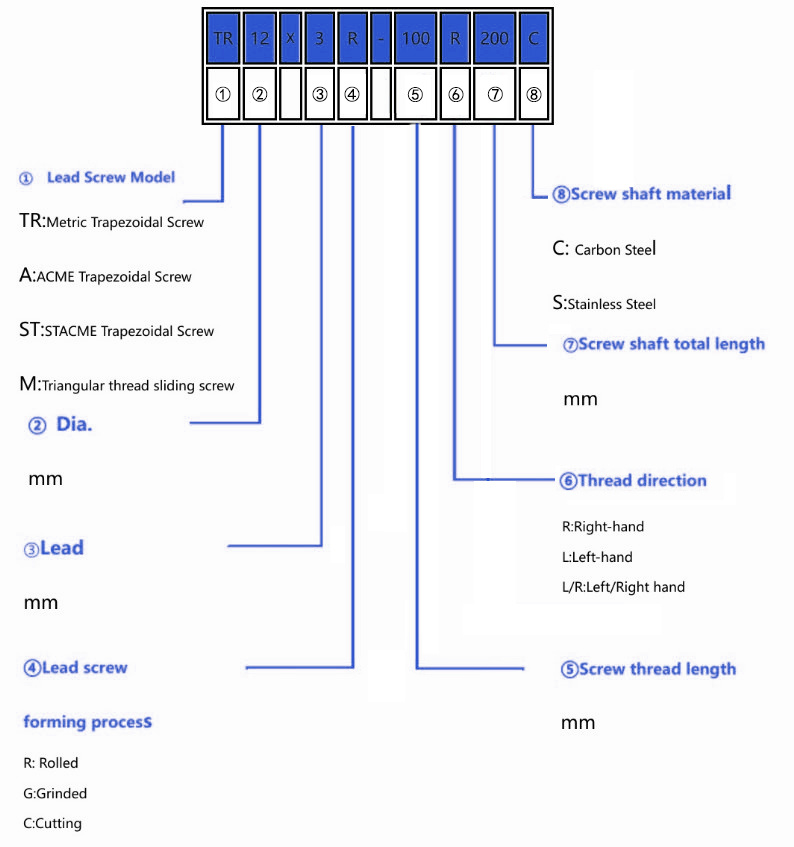

Trapezoidal Screw Notation

Trapezoidal Screw Series

Specification table of trapezoidal screw rod

Modle	Lead	Transmission Efficiency		Dynamic Coa	Allowable thurst N	Static N
Modle	Lead	Plastic	Bronze	Dynamic Coa	Allowable thurst N	Static N

Trl2x2	2	31	22	3000	3920	20200
Trl4x3	3	37	27	2300	4900	16900
Trl6x3	3	34	24	5200	6670	31500
Trl8x4	4	38	27	6300	8730	42000
Tr20x4	4	35	25	9800	9800	37200
Tr22x5	5	39	28	14000	12400	48600
Tr24x5	5	36	26	20000	14200	39800
Tr28x5	5	33	23	27500	17900	69200
Tr32x6	6	34	24	35000	21100	54200
Tr36x6	6	31	22	42000	25800	84500
Tr40x7	7	32	22	46000	36985	82800
Tr44x7	7	30	21	65000	41520	110500
Tr50x8	8	30	21	85000	50100	128000
Tr60x9	9	29	20	14000	98000	224000
Tr70x10	10	27	19	200000	124000	340000
Tr80x10	10	25	17	220000	152000	396000

●The nominal diameter of the minimum screw rod can be 1.8mm; the minimum lead can be 0.1 mm.

●Non-standard diameter and lead can be customized, welcome to inquire.

●It can be made of screw rods and nuts of different materials.
