Grinded Miniature Ball Screw
key word:
Category:
Miniature Ball Screw
Price：
Grinded Miniature Ball Screw

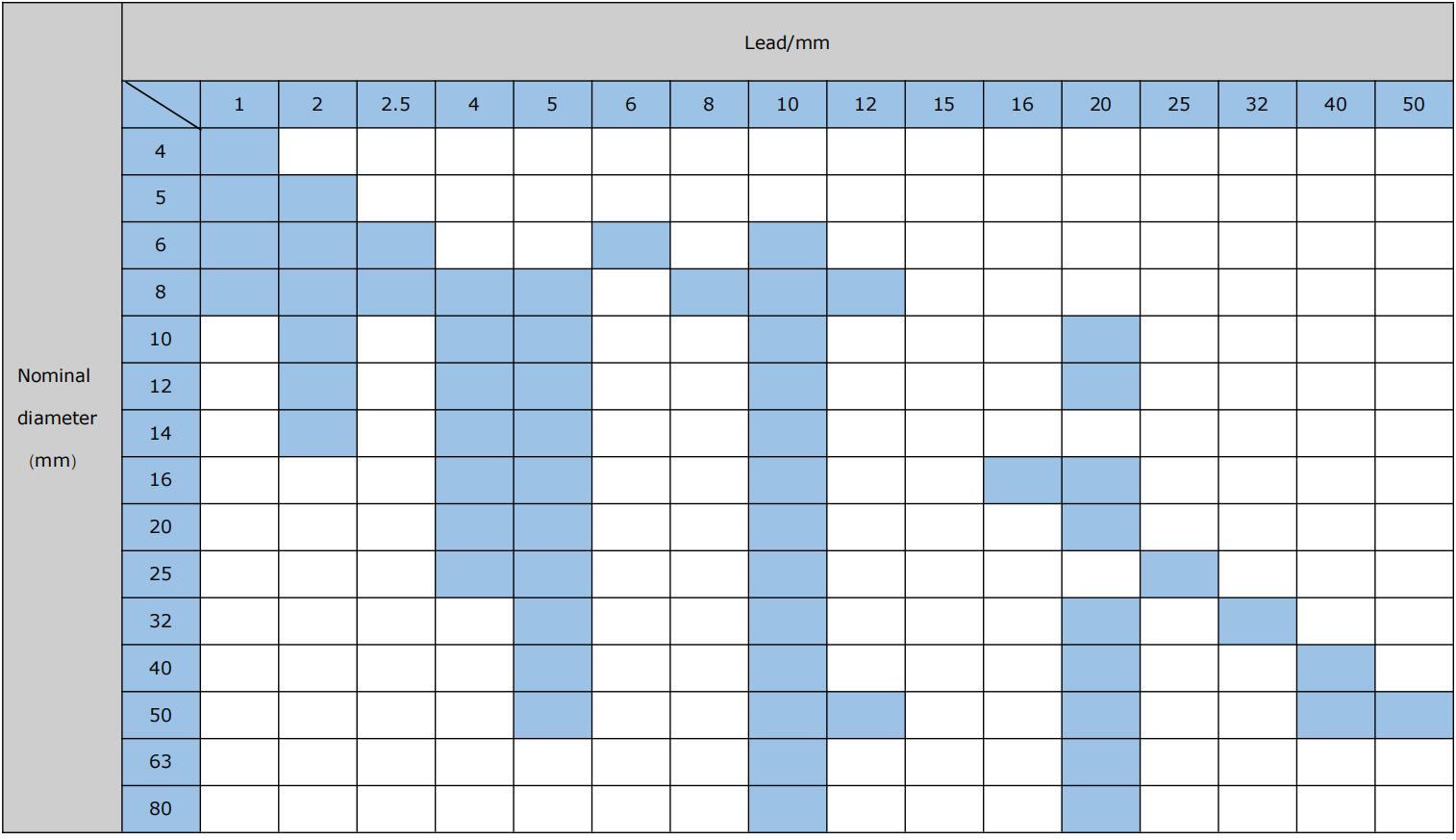

Ball Screw Assemblies Basic Nominal Diameter and Lead
Note:Other non-Standard shaft diameters and leads can be customized
● Customized Products ○
● Standard Products ●
● Other Customized shaft dia & lead

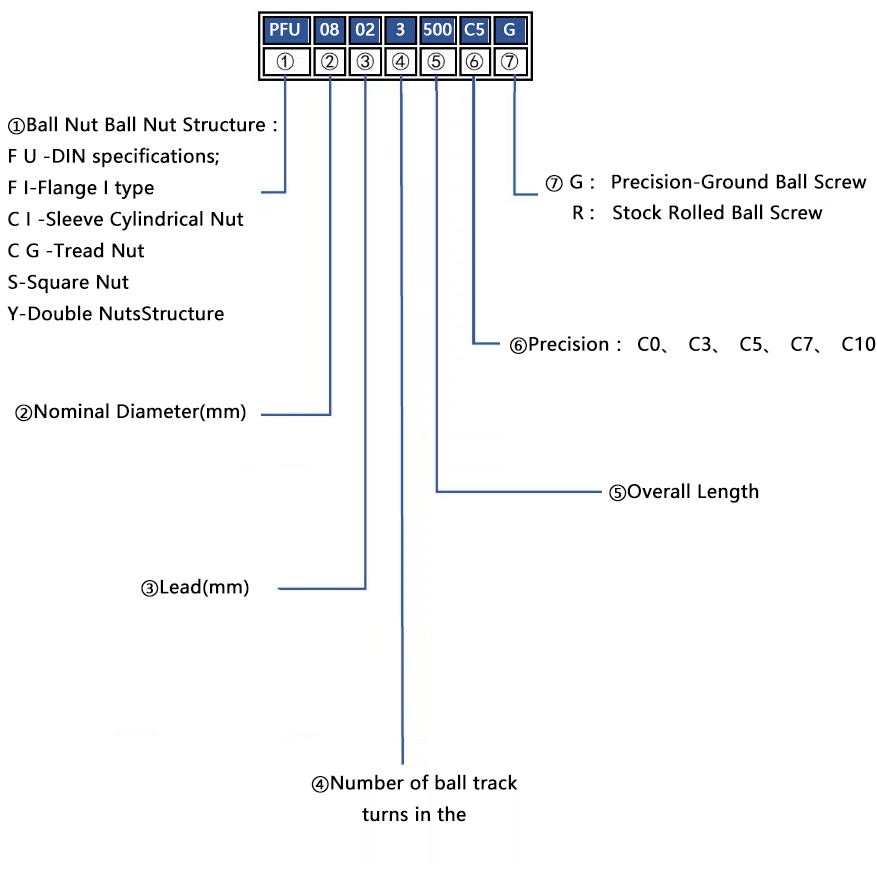

Module number notation
Princile of module number notation
I:Lead; Da:Ball Dia; n:Number of Circuits
Ca:Basic dynamic Rating Load(N)
Coa:Basic Static Rating Load(N)
Unit:mm
|

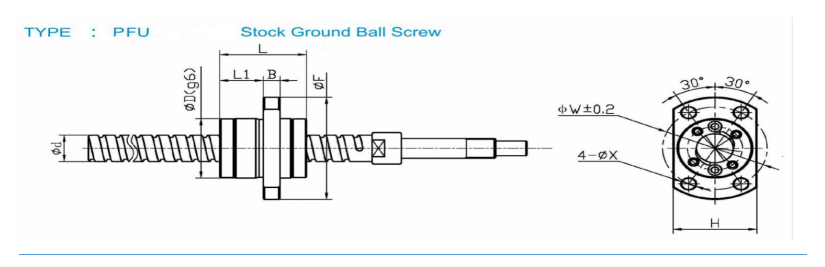

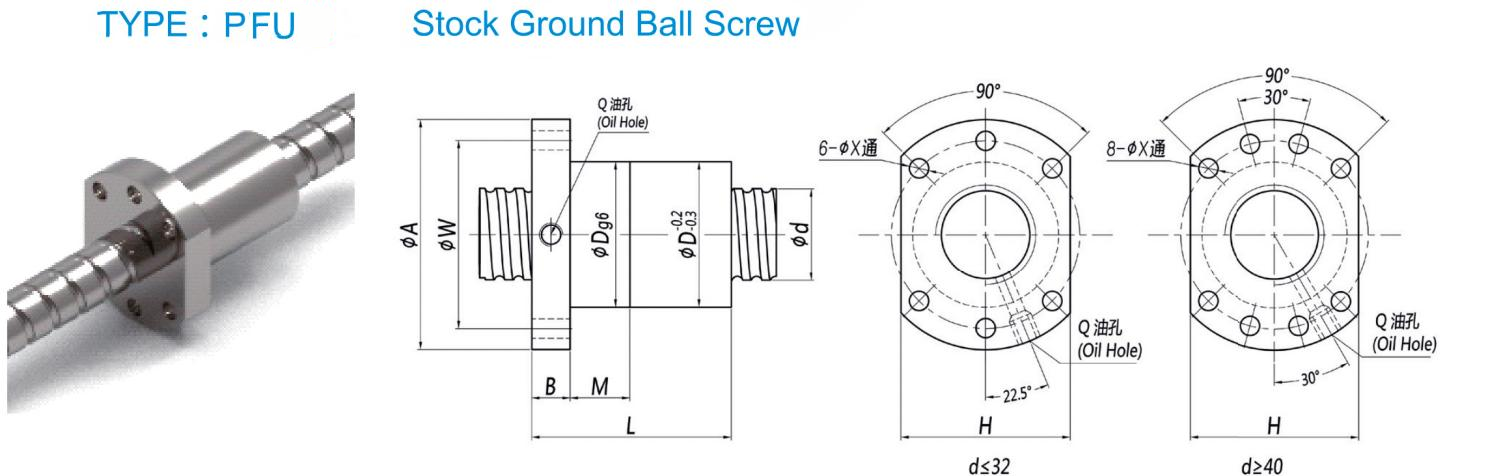

Model |
Dimensions |
|||||||||||
|
d |
I |
Da |
D |
A |
B |
L |
X |
H |
n |
Ca(N) |
Coa(N) |
|
|
PFU0401 |
4 |
1 |
0.8 |
10 |
20 |
3 |
12 |
2.9 |
14 |
3 |
420 |
570 |
|
PFU0501 |
5 |
1 |
0.8 |
10 |
20 |
3 |
12 |
2.9 |
14 |
3 |
500 |
700 |
|
PFU0502 |
5 |
2 |
1.2 |
10 |
20 |
3 |
16 |
3.4 |
14 |
3 |
660 |
1052 |
|
PFU0601 |
6 |
1 |
0.8 |
12 |
24 |
3.5 |
15 |
3.4 |
16 |
3 |
560 |
950 |
|
PFU0602 |
6 |
2 |
1.2 |
12 |
24 |
4 |
16 |
3.4 |
16 |
3 |
750 |
1200 |
|
PFU0801 |
8 |
1 |
0.8 |
14 |
27 |
4 |
16 |
3.4 |
18 |
3 |
650 |
1300 |
|
PFU0802 |
8 |
2 |
1.2 |
14 |
27 |
4 |
16 |
3.4 |
18 |
3 |
1300 |
2300 |
|
PFU0802.5 |
8 |
2.5 |
1.2 |
16 |
29 |
4 |
26 |
3.4 |
20 |
3 |
1345 |
2694 |
|
PFU0805 |
8 |
5 |
1.5875 |
18 |
31 |
4 |
28 |
3.4 |
22 |
3 |
1700 |
3458 |
|
PFU1002 |
10 |
2 |
1.2 |
18 |
35 |
5 |
28 |
4.5 |
22 |
3 |
1455 |
3275 |
|
PFU1004 |
10 |
4 |
2.0 |
26 |
46 |
10 |
34 |
4.5 |
28 |
3 |
2310 |
5261 |
|
PFU1202 |
12 |
1 |
1.2 |
20 |
37 |
5 |
28 |
4.5 |
24 |
4 |
2100 |
4900 |
|
PFU1204 |
12 |
4 |
2.5 |
24 |
40 |
6 |
28 |
4.5 |
26 |
3 |
4400 |
9000 |
|
PFU1205 |
12 |
5 |
2.5 |
24 |
37 |
8 |
39 |
4.5 |
24 |
3 |
4400 |
9000 |
|
PFU1402 |
14 |
2 |
1.2 |
21 |
40 |
6 |
23 |
5.5 |
26 |
4 |
2200 |
5700 |
|
PFU1602 |
16 |
2 |
12 |
25 |
43 |
10 |
40 |
5.5 |
29 |
4 |
2300 |
6700 |
|
PFU1605 |
16 |
5 |
3.175 |
28 |
48 |
10 |
50 |
5.5 |
40 |
4 |
10150 |
15390 |
|
PFU2005 |
20 |
5 |
3.175 |
36 |
58 |
10 |
51 |
6.6 |
44 |
4 |
11680 |
20120 |
|
PFU2010 |
20 |
10 |
3.175 |
36 |
58 |
10 |
53 |
6.6 |
44 |
3 |
9340 |
15800 |
|
PFU2505 |
25 |
5 |
3.175 |
40 |
62 |
10 |
51 |
6.6 |
48 |
4 |
13220 |
26060 |
|
PFU2510 |
25 |
10 |
4.762 |
42 |
64 |
12 |
67 |
6.6 |
50 |
3 |
17080 |
27830 |
|
PFU3205 |
32 |
5 |
3.175 |
50 |
80 |
12 |
52 |
9 |
62 |
4 |
14950 |
34390 |
|
PFU3210 |
31 |
10 |
3.969 |
50 |
80 |
12 |
70 |
9 |
62 |
4 |
19710 |
40590 |
|
PFU3210 |
32 |
10 |
6.35 |
53 |
83 |
12 |
70 |
9 |
65 |
3 |
27610 |
46170 |
|
PFU4010 |
40 |
10 |
6.35 |
63 |
93 |
14 |
85 |
9 |
70 |
4 |
40680 |
80500 |
|
PFU4020 |
38 |
20 |
6.35 |
65 |
95 |
14 |
90 |
9 |
72 |
3 |
30470 |
56240 |
|
PFU5010 |
50 |
10 |
6.35 |
75 |
110 |
16 |
93 |
11 |
85 |
4 |
46050 |
104250 |
I:Lead; Da:Ball Dia; n:Number of Circuits
Ca:Basic dynamic Rating Load(N）
Coa:Basic Static Rating Load(N)
Unit:mm
|
Model |
Dimensions |
||||||||||||
|
d |
P |
Da |
D |
F |
B |
L |
W |
H |
X |
n |
Ca(N) |
Coa(N) |
|
|
PFU0606 |
6 |
6 |
1.2 |
14 |
17 |
4 |
17 |
21 |
16 |
3.4 |
1.6x2 |
1260 |
2130 |
|
PFU0610 |
6 |
10 |
1.2 |
14 |
27 |
4 |
23 |
21 |
16 |
3.4 |
1.2x2 |
950 |
1600 |
|
PFU0804 |
8 |
4 |
1.5875 |
16 |
29 |
4 |
21.9 |
23 |
20 |
3.4 |
1.6x2 |
1714 |
2763 |
|
PFU0808 |
8 |
8 |
1.5875 |
18 |
31 |
4 |
20 |
25 |
20 |
3.4 |
1.6x2 |
2200 |
3800 |
|
PFU0810 |
8 |
10 |
1.5875 |
18 |
31 |
4 |
25 |
25 |
20 |
3.4 |
1.6x2 |
2200 |
3800 |
|
PFU0812 |
8 |
12 |
1.5875 |
18 |
31 |
4 |
28 |
25 |
20 |
3.4 |
1.6x2 |
2200 |
4000 |
|
PFU1010 |
10 |
10 |
2 |
23 |
40 |
5 |
24 |
32 |
25 |
4.5 |
1.6x2 |
3300 |
5980 |
|
PFU1015 |
10 |
15 |
2 |
23 |
40 |
5 |
33 |
32 |
25 |
4.5 |
1.6x2 |
3300 |
5980 |
|
PFU1020 |
10 |
20 |
2 |
23 |
40 |
5 |
42 |
32 |
25 |
4.5 |
1.6x2 |
3300 |
5980 |
|
PFU1210 |
12 |
10 |
2 |
24 |
41 |
6 |
24 |
33 |
26 |
4.5 |
1.7x2 |
4200 |
8900 |
|
PFU1220 |
12 |
20 |
2.5 |
24 |
41 |
6 |
50 |
33 |
26 |
4.5 |
1.7x2 |
4500 |
9300 |
I:Lead; Da:Ball Dia; n:Number of Circuits
Ca:Basic dynamic Rating Load(N)
Coa:Basic Static Rating Load(N)
Unit:mm
|

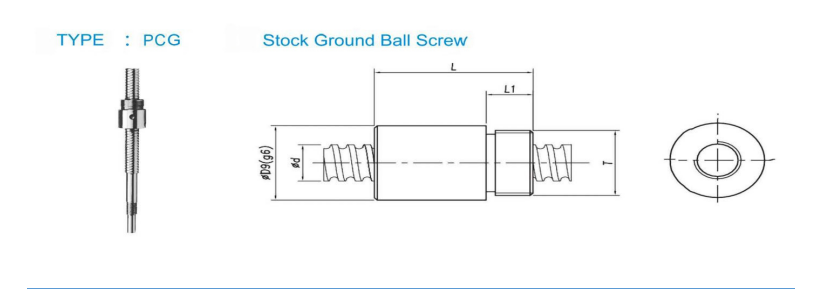

Model |
Dimensions |
|||||||||
|
d |
I |
Da |
D |
L |
L1 |
T |
n |
Ca(N) |
Coa(N) |
|
|
PCG0401 |
4 |
1 |
0.8 |
10 |
15 |
5 |
M8x0.75 |
3 |
420 |
570 |
|
PCG0501 |
5 |
1 |
0.8 |
12 |
15 |
5 |
M10x1 |
3 |
500 |
700 |
|
PCG0502 |
5 |
2 |
1.2 |
12 |
20 |
6 |
M10x1 |
3 |
660 |
1052 |
|
PCG0601 |
6 |
1 |
0.8 |
12 |
20 |
6 |
M10x1 |
3 |
560 |
950 |
|
PCG0602 |
6 |
2 |
1.2 |
12 |
20 |
6 |
M10x1 |
3 |
750 |
1200 |
|
PCG0801 |
8 |
1 |
0.8 |
16 |
22 |
8 |
M14x1 |
3 |
650 |
1300 |
|
PCG0802 |
8 |
2 |
1.2 |
16 |
27 |
8 |
M14x1 |
3 |
1300 |
2300 |
|
PCG0802.5 |
8 |
2.5 |
1.2 |
16 |
29 |
8 |
M14x1 |
3 |
1345 |
2694 |
|
PCG0804 |
8 |
4 |
1.588 |
18 |
34 |
8 |
M16x1 |
3 |
1714 |
3480 |
|
PCG0805 |
8 |
5 |
1.588 |
18 |
34 |
8 |
M16x1 |
3 |
1700 |
3458 |
|
PCG1002 |
10 |
2 |
1.2 |
20 |
22 |
7.5 |
M18x1 |
3 |
1455 |
3275 |
|
PCG1004 |
10 |
4 |
2.0 |
26 |
34 |
10 |
M18x1 |
3 |
2310 |
5261 |
|
PCG1202 |
12 |
2 |
1.2 |
20 |
28 |
10 |
M18x1 |
4 |
2100 |
4900 |
|
PCG1204 |
12 |
4 |
2.5 |
24 |
38 |
10 |
M20x1 |
3 |
4400 |
9000 |
|
PCG1205 |
12 |
5 |
2.5 |
24 |
38 |
10 |
M20x1 |
3 |
4400 |
9000 |
|
PCG1402 |
14 |
2 |
1.2 |
24 |
38 |
10 |
M20x1 |
4 |
2200 |
5700 |
I:Lead; Da:Ball Dia; n:Number of Circuits
Ca:Basic dynamic Rating Load(N)
Coa:Basic Static Rating Load(N)
Unit:mm
|
Model |
Dimensions |
|||||||||
|
d |
I |
Da |
D |
L |
L1 |
T |
n |
Ca(N) |
Coa(N) |
|
|
PCG0401 |
4 |
1 |
0.8 |
10 |
15 |
5 |
M8x0.75 |
3 |
420 |
570 |
|
PCG0501 |
5 |
1 |
0.8 |
12 |
15 |
5 |
M10x1 |
3 |
500 |
700 |
|
PCG0502 |
5 |
2 |
1.2 |
12 |
20 |
6 |
M10x1 |
3 |
660 |
1052 |
|
PCG0601 |
6 |
1 |
0.8 |
12 |
20 |
6 |
M10x1 |
3 |
560 |
950 |
|
PCG0602 |
6 |
2 |
1.2 |
12 |
20 |
6 |
M10x1 |
3 |
750 |
1200 |
|
PCG0801 |
8 |
1 |
0.8 |
16 |
22 |
8 |
M14x1 |
3 |
650 |
1300 |
|
PCG0802 |
8 |
2 |
1.2 |
16 |
27 |
8 |
M14x1 |
3 |
1300 |
2300 |
|
PCG0802.5 |
8 |
2.5 |
1.2 |
16 |
29 |
8 |
M14x1 |
3 |
1345 |
2694 |
|
PCG0804 |
8 |
4 |
1.588 |
18 |
34 |
8 |
M16x1 |
3 |
1714 |
3480 |
|
PCG0805 |
8 |
5 |
1.588 |
18 |
34 |
8 |
M16x1 |
3 |
1700 |
3458 |
|
PCG1002 |
10 |
2 |
1.2 |
20 |
22 |
7.5 |
M18x1 |
3 |
1455 |
3275 |
|
PCG1004 |
10 |
4 |
2.0 |
26 |
34 |
10 |
M18x1 |
3 |
2310 |
5261 |
|
PCG1202 |
12 |
2 |
1.2 |
20 |
28 |
10 |
M18x1 |
4 |
2100 |
4900 |
|
PCG1204 |
12 |
4 |
2.5 |
24 |
38 |
10 |
M20x1 |
3 |
4400 |
9000 |
|
PCG1205 |
12 |
5 |
2.5 |
24 |
38 |
10 |
M20x1 |
3 |
4400 |
9000 |
|
PCG1402 |
14 |
2 |
1.2 |
24 |
38 |
10 |
M20x1 |
4 |
2200 |
5700 |
I:Lead; Da:Ball Dia; n:Number of Circuits
Ca:Basic dynamic Rating Load(N)
Coa:Basic Static Rating Load(N)
Unit:mm
|

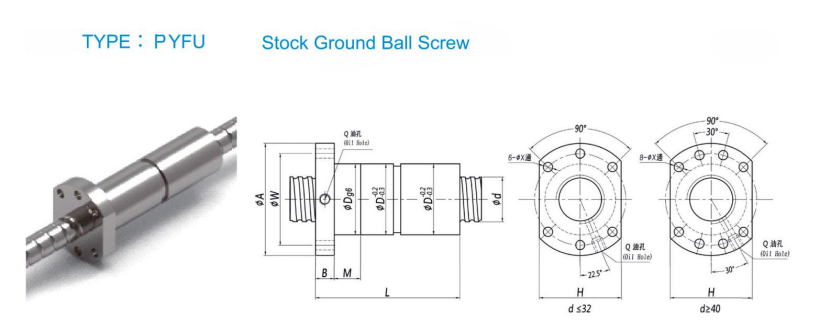

Model |
Dimensions |
|||||||||||
|
d |
I |
Da |
D |
A |
B |
M |
L |
H |
n |
Ca(N) |
Coa(N) |
|
|
PYFU1605 |
16 |
5 |
3.175 |
28 |
48 |
10 |
12 |
100 |
40 |
4 |
10150 |
15390 |
|
PYFU2005 |
20 |
5 |
3.175 |
36 |
58 |
10 |
12 |
101 |
44 |
4 |
11680 |
20120 |
|
PYFU2010 |
20 |
10 |
3.175 |
36 |
58 |
10 |
12 |
117 |
44 |
3 |
9340 |
15800 |
|
PYFU2505 |
25 |
5 |
3.175 |
40 |
62 |
10 |
12 |
101 |
48 |
4 |
13220 |
26060 |
|
PYFU2510 |
25 |
10 |
4.762 |
42 |
64 |
12 |
15 |
145 |
50 |
3 |
17080 |
27830 |
|
PYFU3205 |
32 |
5 |
3.175 |
50 |
80 |
12 |
15 |
102 |
62 |
4 |
14950 |
34390 |
|
PYFU3210 |
32 |
10 |
3.969 |
50 |
80 |
12 |
15 |
162 |
62 |
4 |
19710 |
40590 |
|
PYFU3210 |
32 |
10 |
6.35 |
53 |
83 |
12 |
15 |
162 |
65 |
3 |
27610 |
46170 |
|
PYFU4010 |
40 |
10 |
6.35 |
63 |
93 |
14 |
20 |
165 |
70 |
4 |
40680 |
80500 |
|
PYFU4020 |
40 |
20 |
6.35 |
65 |
95 |
14 |
20 |
200 |
72 |
3 |
30470 |
56240 |
|
PYFU5010 |
50 |
10 |
6.35 |
75 |
110 |
16 |
25 |
171 |
85 |
4 |
46050 |
104250 |
Previous
Inquiry
Exclusive Customization Welcome Online Appointment
* Note: Please make sure to fill in the information accurately and maintain smooth communication. We will contact you as soon as possible
Series Motion Industry Co., Ltd.
Anzhu
Add：Series Science and Technology Park, No.78 Yan Fengying Road, Hefei , China.
Follow Us
