SRV SERIES

key word:

Category:

Planetary Roller Screw

Price：

info@seriesmotionindustry.com

Inquiry

SRV SERIES

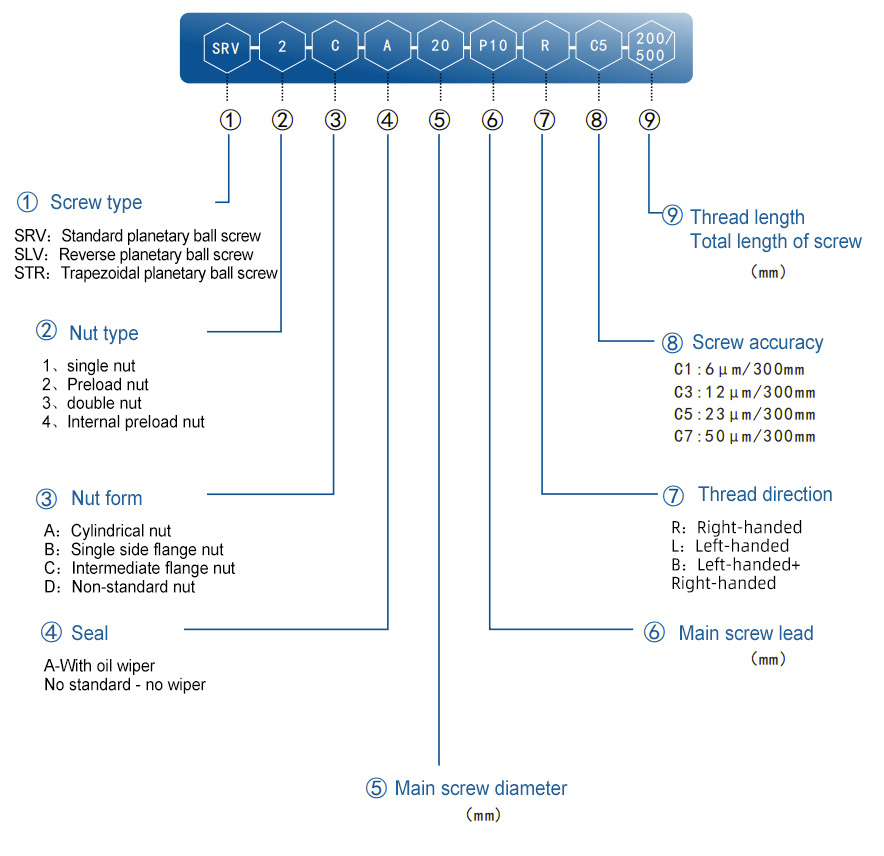

Numbering rules

Model	Diameter D* Lead (P)	Quantity	Nominal Diameter (d0)	Screw outer diameter (d1)	Screw root diameter (d2)		Dynamic load (C)	Static load (CO)	D1	D2	D5	D7	L1	L1	L2	L3	L4	L5	L6	L7	D8
Model	Diameter D* Lead (P)	(N)	mm	mm	run		KN	KN	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm

SRV0802	8*2	4	8	8. 17	7. 76	0.87	8.6	15.4	25	46	4.8	36	34	44	26.3	12	3	16	-	12	12
SRV0804	8*4	4	8	8. 3	7.49	0.89	8.9	13.4	25	46	4.8	36	34	44	26.3	12	3	16	-	12	12
SRV1203	12*3	5	12	12.22	11.74	0.87	13.2	21.1	30	51	4.8	41	34	44	27. 3	12	3	16	-	12	15
SRV1203	12*3	5	12	12. 32	11.56	0.89	14.5	21.3	30	51	4.8	41	34	44	27. 3	12	3	16	-	12	15
SRV1208	12*8	5	12	12.42	11.13	0.9	15.3	20.7	30	51	4.8	41	34	44	27. 3	12	3	16	-	12	15
SRV1503	15*3	5	15	15. 22	14.74	0.86	18.4	42.6	35	58	5.8	46	41	51	36.7	16	4	18	-	12	17
SRV1505	15*5	5	15	15. 32	14.56	0.89	20	42.1	35	58	5.8	46	41	51	36.7	16	4	18	-	12	17
SRV1508	15*8	5	15	15.46	14.16	0.9	21.9	41.3	35	58	5.8	46	41	51	36.7	16	4	18	-	12	17
SRV1803	18*3	5	18	18. 2	17.74	0.85	28.4	65.6	40	63	5.8	51	48	58	42	18	5	18	-	12	20
SRV1805	18*5	5	18	18. 32	17.56	0.88	30	63.8	40	63	5.8	51	48	58	42	18	5	18	-	12	20
SRV1808	18*8	5	18	18. 46	17.16	0.89	31.9	61.2	40	63	5.8	51	48	58	42	18	5	18	-	12	20
SRV2103	21*3	5	21	21.21	20.72	0.84	39.9	87.7	45	68	5.8	56	54	64	47	20	5	20	12	12	25
SRV2105	21*5	5	21	21.33	20.52	0.87	41.9	88.8	45	68	5.8	56	54	64	47	20	5	20	12	12	25
SRV2108	21*8	5	21	21.49	20.19	0.89	42.4	89.3	45	68	5.8	56	54	64	47	20	5	20	12	12	25
SRV2110	21*10	5	21	21.58	19.96	0.89	43.7	87.2	45	68	5.8	56	54	64	47	20	5	20	12	12	25
SRV2505	25*5	5	24	24. 34	23.53	0.87	65.5	114. 2	53	84	7	70	64	74	55.5	25	6	20	13	12	30
SRV2508	25*8	5	24	24.51	23.21	0.89	76.1	114. 8	53	84	7	70	64	74	55.5	25	6	20	13	12	30
SRV2510	25*10	5	24	24.6	22.98	0.89	78.6	113.6	53	84	7	70	64	74	55.5	25	6	20	13	12	30
SRV2515	25*15	5	24	24.6	22.98	0.89	80.6	113.6	53	84	7	70	64	74	55.5	25	6	20	13	12	30
SRV3005	30*5	5	30	30. 37	29.56	0.85	91.7	157.5	62	92	9	77	75	85	64. 7	20	6	27	16	15	35
SRV3010	30*10	5	30	30.63	29.01	0.89	108.5	167.6	62	92	9	77	75	85	64.7	20	6	27	16	15	35
SRV3015	30*15	5	30	30.87	28.44	0.9	109.6	167.2	62	92	9	77	75	85	64.7	20	6	27	16	15	35
SRV3020	30*20	5	30	31.05	27.81	0.9	107.7	167.8	62	92	9	77	75	85	64.7	20	6	27	16	15	35
SRV3605	36*5	5	36	36. 37	35.56	0.84	106.9	220.4	74	110	9	92	85	95	76.7	28	6	30	16	15	40
SRV3610	36*10	5	36	36.65	35.12	0.88	135.9	221. 3	74	110	9	92	85	95	76.7	28	6	30	16	15	40
SRV3615	36*15	5	36	36.8	34.48	0.89	136. 7	221.5	74	110	9	92	85	95	76.7	28	6	30	16	15	40
SRV3620	36*20	5	36	37. 12	33.88	0.9	136.5	223.8	74	110	9	92	85	95	76.7	28	6	30	16	15	40

Note: Axial spacing can be reduced upon request

Model	Diameter D* Lead	Quantity	Nominal Diameter (dO)	Screw oute diameter (d1)	Screw roo diameter (d2)		Dynamic load (C)	Static load (CO)	D1	D2	D5	D7	L1	L1	L2	L3	L4	L5	L6	L7	D8
Model	(P)	(N)	mm	mm	mm		KN	KN	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm

SRV3905	39*5	5	39	39. 35	38. 54	0. 87	129. 2	245.2	80	116	11	98	90	100	82. 7	28	6	30	18	18	45
SRV3910	39*10	5	39	39. 74	38. 12	0. 88	153.4	257.4	80	116	11	98	90	100	82. 7	28	6	30	18	18	45
SRV3915	39*15	5	39	39. 92	37. 49	0. 89	168. 8	251.1	80	116	11	98	90	100	82. 7	28	6	30	18	18	45
SRV3920	39*20	5	39	40. 15	36. 90	0. 90	173. 7	275.5	80	116	11	98	90	100	82. 7	28	6	30	18	18	45
SRV3925	39*25	5	39	40. 50	36. 80	0. 90	175. 3	261.7	80	116	11	98	90	100	82. 7	28	6	30	18	18	45
SRV4406	44*6	6	44	44. 35	43. 54	0. 84	166. 0	301.2	80	118	11	100	105	115	82. 7	35	6	35	18	18	50
SRV4412	44*12	6	44	44. 65	43. 03	0. 88	175. 3	310.5	80	118	11	100	105	115	82. 7	35	6	35	18	18	50
SRV4418	44*18	6	44	44. 90	42. 47	0. 89	183. 3	305.7	80	118	11	100	105	115	82. 7	35	6	35	18	18	50
SRV4424	44*24	6	44	45. 12	41.88	0. 90	190. 2	306.8	80	118	11	100	105	115	82. 7	35	6	35	18	18	50
SRV4430	44*30	6	44	45. 28	41.23	0. 90	175. 3	302.4	80	118	11	100	105	115	82. 7	35	6	35	18	18	50
SRV4805	48*5	5	48	48. 35	47. 54	0. 82	198. 0	410.8	100	150	13.5	127	115	127	103	45	8	37	20	20	55
SRV4810	48*10	5	48	48. 67	47. 05	0. 87	215. 6	432.7	100	150	13. 5	127	115	127	103	45	8	37	20	20	55
SRV4815	48*15	5	48	48. 99	46. 53	0. 88	225. 3	435.7	100	150	13. 5	127	115	127	103	45	8	37	20	20	55
SRV4820	48*20	5	48	49. 21	45. 97	0. 89	227. 3	473.4	100	150	13. 5	127	115	127	103	45	8	37	20	20	55
SRV4825	48*25	5	48	49. 43	45. 38	0. 90	230. 5	468.4	100	150	13. 5	127	115	127	103	45	8	37	20	20	55
SR4830	48*30	5	48	49. 62	44. 75	0. 89	220. 7	458.5	100	150	13. 5	127	115	127	103	45	8	37	20	20	55
SR4806	48*6	6	48	48. 35	47. 54	0. 84	190. 1	401.7	86	122	11	104	115	127	88. 7	45	6	37	20	20	55
SRV4812	48*12	6	48	48. 66	47. 04	0. 88	207. 6	427.9	86	122	11	104	115	127	88. 7	45	6	37	20	20	55
SRV4815	48*15	6	48	48. 79	46. 76	0. 88	214. 2	430.1	86	122	11	104	115	127	88. 7	45	6	37	20	20	55
SRV4818	48*18	6	48	48. 92	46. 49	0. 89	215. 4	428.3	86	122	11	104	115	127	88. 7	45	6	37	20	20	55
SRV4820	48*20	6	48	49. 00	46. 30	0. 89	216. 9	485.7	86	122	11	104	115	127	88. 7	45	6	37	20	20	55
SRV4824	48*24	6	48	49. 15	45. 91	0.90	230. 4	435.0	86	122	11	104	115	127	88. 7	45	6	37	20	20	55
SRV5606	56*6	6	56	56. 36	55. 30	0. 80	213. 1	420.6	100	150	13. 5	127	125	139	105	50	8	37	22	20	60
SRV5609	56*9	6	56	56. 60	55. 00	0. 83	257. 0	449.2	100	150	13. 5	127	125	139	105	50	8	37	22	20	60
SRV5612	56*12	6	56	56. 80	54. 70	0. 87	242. 0	460.6	100	150	13. 5	127	125	139	105	50	8	37	22	20	60
SRV5615	56*15	6	56	57. 00	54. 40	0. 87	258. 0	505.8	100	150	13. 5	127	125	139	105	50	8	37	22	20	60
SRV5618	56*18	6	56	57. 20	54. 10	0. 87	268. 0	514.6	100	150	13.5	127	125	139	105	50	8	37	22	20	60
SRV5624	56*24	6	56	57. 5	53. 8	0. 88	296	514.6	100	150	13. 5	127	125	139	105	50	8	37	22	20	60

Note: Axial spacing can be reduced upon request

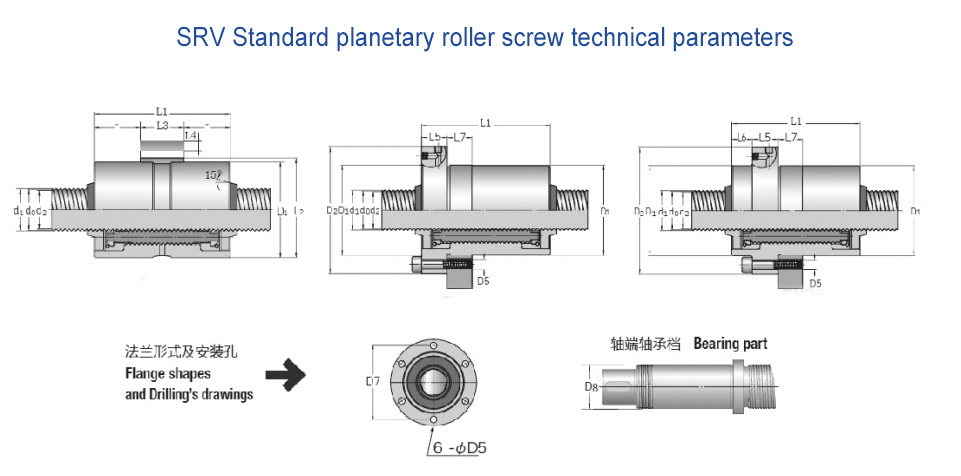

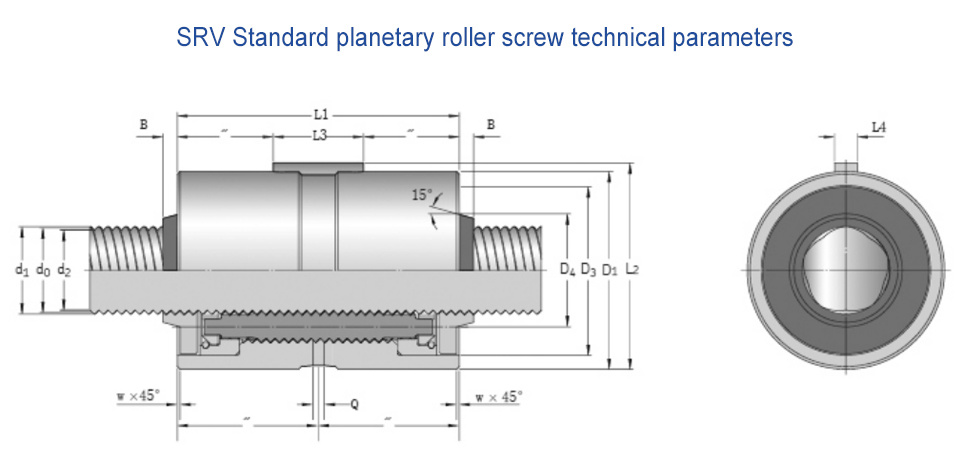

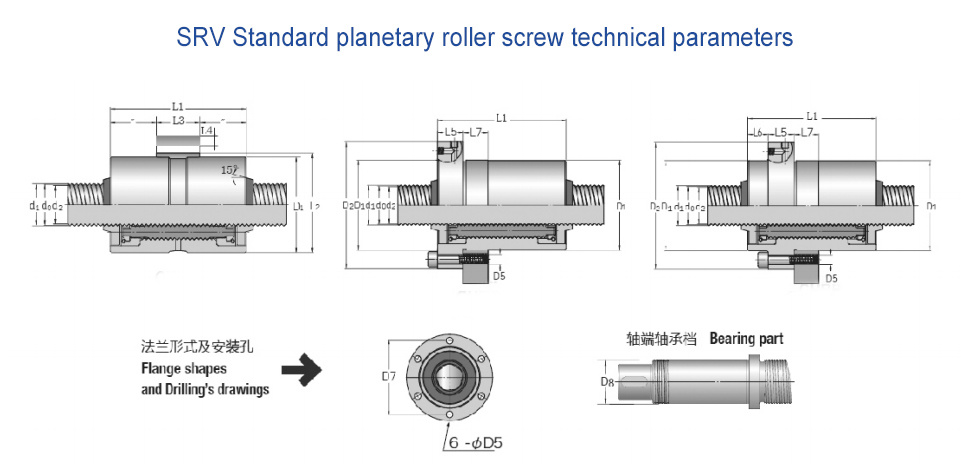

Model	Diameter D* Lead	Nominal Diameter (dO)	Screw outer diameter (d1)	Screw root diameter (d2)	Dynamic load (C)	Static load (CO)	n	D1 g6/H7	L1	w	L4	L3	L2	Q	B	D3	D4
Model	(P)	mm	mm	mm	KN	KN	-	mm	mm		mm	mm	mm	mm	mm	mm	mm

SRV6015	60*15	60	61.2	58.4	494	1 206	0.88	122	171	1	10	56	125	11	9	110	71
SRV6020	60*20	60	61.5	57.9	515	1 181	0.89	122	171	1	10	56	125	11	9	110	71
SRV6025	60 *25	60	61.9	57.3	530	1 227	0.89	122	171	1	10	56	125	11	9	110	71
SRV6030	60 *30	60	62.3	56.8	528	1 216	0.88	122	171	1	10	56	125	11	9	110	71
SRV7515	75 *15	75	76.2	73.4	836	2473	0.87	150	213	1	10	63	153	11	10	136	87
SRV7520	75 *20	75	76.5	72.9	845	2455	0.88	150	213	1	10	63	153	11	10	136	87
SRV7525	75 *25	75	76.9	72.3	855	2461	0.89	150	213	1	10	63	153	11	10	136	87
SRV7530	75 *30	75	77.3	71.8	852	2420	0.89	150	213	1	10	63	153	11	10	136	87
SRV8715	87 *15	87	88.2	85.4	1059	3527	0.86	175	245	1.5	12	100	178	12	12	158	103
SRV8720	87 *20	87	88.5	84.9	1061	3452	0.88	175	245	1.5	12	100	178	12	12	158	103
SRV8725	87 *25	87	88.9	84.4	1085	3513	0.89	175	245	1.5	12	100	178	12	12	158	103
SRV8730	87 *30	87	89. 3	83.8	1085	3465	0. 89	175	245	1.5	12	100	178	12	12	158	103
SRV9915	99 *15	99	100.2	97.4	1277	4671	0.85	200	280	1.5	16	100	204	15	12	180	112
SRV9920	99 *20	99	100.5	96.9	1311	4741	0.87	200	280	1.5	16	100	204	15	12	180	112
SRV9925	99 *25	99	100.9	96.4	1328	4749	0.88	200	280	1.5	16	100	204	15	12	180	112
SRV9930	99 *30	99	101.3	95.9	1330	4694	0.89	200	280	1.5	16	100	204	15	12	180	112
SRV9935	99 *35	99	101.7	95.3	1329	4639	0.89	200	280	1.5	16	100	204	15	12	180	112
SRV112. 515	112.5 *15	112.5	113. 7	110.9	1396	5288	0. 84	230	300	1.5	16	100	234	15	12	210	140
SRV112.520	112.5 *20	112.5	114	110.4	1421	5297	0.86	230	300	1.5	16	100	234	15	12	210	140
SRV112.525	112.5 *25	112.5	114.4	109.9	1446	5341	0.88	230	300	1.5	16	100	234	15	12	210	140
SRV112.530	112.5 *30	112.5	114. 8	109.4	1455	5315	0.88	230	300	1.5	16	100	234	15	12	210	140
SRV112. 535	112.5 *35	112.5	115. 2	108.9	1461	5289	0.89	230	300	1.5	16	100	234	15	12	210	140
SRV12015	120 *15	120	121.2	118.4	1547	6179	0.83	240	330	1.5	16	100	244	15	12	220	180
SRV12020	120 *20	120	121.5	117.9	1587	6263	0.86	240	330	1.5	16	100	244	15	12	220	180
SRV12025	120 *25	120	121.9	117.4	1585	6123	0.87	240	330	1.5	16	100	244	15	12	220	180
SRV12030	120 *30	120	122.3	116.9	1614	6207	0.88	240	330	1.5	16	100	244	15	12	220	180
SRV12035	120 *35	120	122. 7	116.4	1640	6291	0.89	240	330	1.5	16	100	244	15	12	220	180
SRV12040	120 *40	120	123	115.8	1651	6301	0.89	240	330	1.5	16	100	244	15	12	220	180

Note: Axial spacing can be reduced upon request
