SLV SERIES

key word:

Category:

Planetary Roller Screw

Price：

info@seriesmotionindustry.com

Contact Us
Inquiry

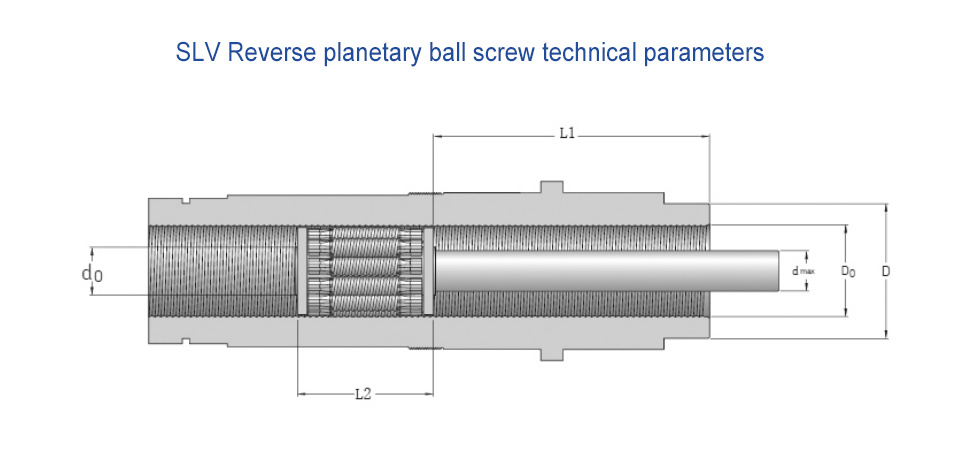

SLV SERIES

1

 Model   Diameter D*
Lead(p)		  Quantity(N) Nominal
Diameter (d0)		 Dynamic
 load (C)		 Static
load (C0)		  η  η  D0  D
Standard
diameter		  dmax  L1  L2
mm KN KN -   KN mm mm mm mm

SLV180204 18*2.4 3 18 25. 6 59.9 0. 69 0.55 30 38 16 65 50
SLV1803 18*3 3 18 27. 8 60.9 0. 73 0. 63 30 38 16 60 50
SLV180405 18*4.5 3 18 26. 6 51.2 0. 77 0. 7 30 38 16 55 50
SLV1806 18*6 3 18 30. 4 51.9 0. 82 0. 78 30 38 16 45 50
SLV210204 21*2.4 3 21  45. 5 92 0. 66 0.48 35 45 18 84 56
SLV2103 21*3 3 21 49. 6 95 0. 7 0.57 35 45 18 79 56
SLV210405 21*4.5 3 21 53. 3 94 0. 75 0. 67 35 45 18 74 56
SLV2106 21*6 3 21 54. 2 82. 2 0. 8 0. 75 35 45 18 64 56
SLV240204 24*2. 4 3 24  53. 7 108 0. 63 0.41 40 50 21 210 65
SLV2403 24*3 3 24 57. 2 109 0. 68 0.53 40 50 21 170 65
SLV240405 24*4. 5 3 24 62 109 0. 73 0. 63 40 50 21 110 65
SLV2406 24*6 3 24 64. 5 99 0. 79 0. 73 40 50 21 75 65
SLV240204 30*2. 4 3 30  83. 2 185 0.58 0. 28 50 60 27 210 75
SLV3003 30*3 3 30 89. 2 188 0. 63 0.41 50 60 27 210 75
SLV300405 30*4. 5 3 30 95 184 0. 69 0.55 50 60 27 210 75
SLV3006 30*6 3 30 98 190 0. 76 0. 68 50 60 27 200 75
SLV39024 39*2. 4 3 39  125 301 0.52 0. 08 65 75 36 195 90
SLV3903 39*3 3 39  133 301 0.57 0. 25 65 75 36 195 90
SLV390405 39*4. 5 3 39  143 302 0. 64 0.44 65 75 36 195 90
SLV3906 39*6 3 39  159 304 0. 72 0. 61 65 75 36 195 90
SLV480204 48*2. 4 3 48  209 564 0.47 0. 08 80 90 44 171 114
SLV4803 48*3 3 48 221 567 0.52 0. 08 80 90 44 171 114
SLV480405 48*4. 5 3 48 234 557 0.59 0. 31 80 90 44 171 114
SLV4806 48*6 3 48 259 559 0. 68 0.53 80 90 44 171 114
SLV6003 60*3 3 60  452 1205 0.47 0. 08 100 115 55 210 160
SLV60405 60*4. 5 3 60 476 1117 0.54 0. 25 100 115 55 210 160
SLV6006 60*6 3 60 487 1208 0. 63 0. 31 100 115 55 200 160
SLV6009 60*9 3 60 495 1210 0. 72 0.53 100 115 55 200 160

Note: Axial spacing can be reduced upon request
